Ultra-Compact High Density Servo Drive Module

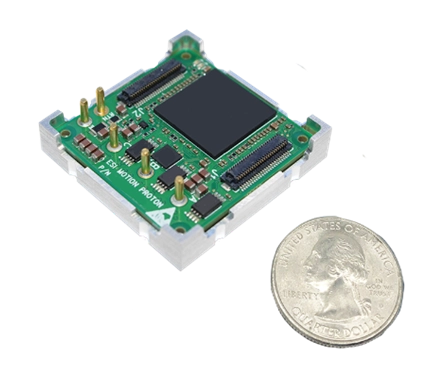

從僅有不到 4cm x 4cm 面積就能額定輸出高至 50A 的 Proton 系列，到同樣擁有緊湊體積就能額定輸出 24kW 功率的Scorpion 系列，ESI Motion™ 堅固、緊湊、毫無妥協的性能提供您航太與國防應用最佳伺服驅動解決方案。全系列產品美國製造。
產品特點
• Wide temperature range
• Aerospace ready
• Compact size
• Single and dual-axis configurations available
• High-power density
• Configurable, user-friendly GUI with built-in scope features
應用場域
• Gimbals & antenna positioners
• Missiles & armaments
• Satellites
• Unmanned systems
• Robotics
• Radar
• Turret control
• Weapons release mechanisms
Exceptional Servo Drives Offer Engineering Solutions
LEARN MORE• 尺寸僅 37.1 x 37.1 x 10.4 mm ，重量僅 16.8 g 克
• 額定輸出電流：50 A額定
• 輸出功率：3.85 kW
• 輸入電壓範圍：8 VDC to 80 VDC40 kHz PWM
• 支援多種回授：Dual Resolver, Dual Quadrature Encoder, Dual BiSS-C, Dual HALL, Sensorless
• 通訊介面：CAN, RS-422
• 操作溫度：– 55 °C to 100 °C

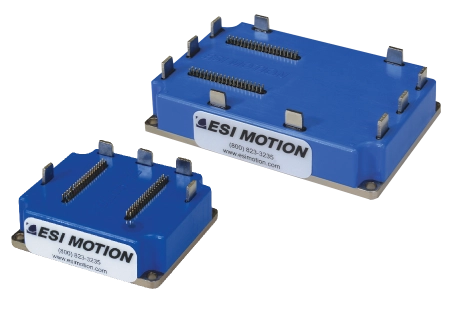

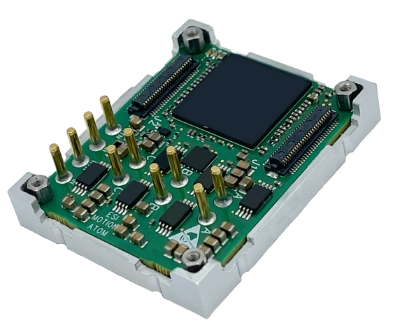

• 尺寸僅 45.5 x 37.1 x 10.7 mm ，重量僅 53.9 g 克
• 額定輸出電流：100 A
• 額定輸出功率：7.7 kW
• 輸入電壓範圍：8 VDC to 80 VDC40 kHz PWM
• 支援多種回授：Dual Resolver, Dual Quadrature Encoder, Dual BiSS-C, Dual HALL, Sensorless
• 通訊介面：CAN, RS-422
• 操作溫度：– 55 °C to 100 °C
• 額定輸出電流：40 A
• 額定輸出功率：2 kW
• 輸入電壓範圍：12 VDC to 170 VDC
• 最高馬達轉速：75,000 RPM
• 支援多種回授：Dual Resolver, Dual Quadrature Encoder, Dual BiSS-C, Dual HALL, Sensorless
• 通訊介面：CAN, RS-422
• 操作溫度：– 55 °C to 100 °C

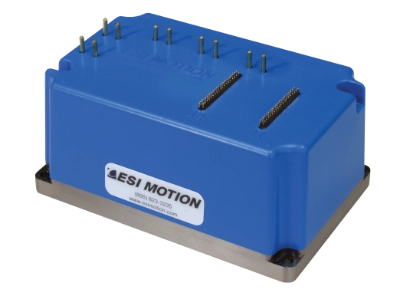

• 額定輸出電流：80 A
• 額定輸出功率：24 kW
• 輸入電壓範圍：24 VDC to 600 VDC
• 最高馬達轉速：75,000 RPM
• 支援多種回授：Dual Resolver, Dual Quadrature Encoder, Dual BiSS-C, Dual HALL, Sensorless
• 通訊介面：CAN, RS-422
• 操作溫度：– 55 °C to 85 °C
| PROTON | ATOM | MITE | SCORPION |
|---|---|---|---|
| Single Axis | Dual Axis | Single/Dual Axis | Single Axis |
| 50 A Continuous Current* | 100 A Continuous Current* | 40 A (Cont.), 2 kW | 60 A (Cont.), 24 kW |
| Bus Voltage: 8 to 80 VDC | 12 to 170 VDC | 24 to 600 VDC | |
| Operating temperature: -55°C to 100°C** | -55°C to 71°C** | ||
| Size: 37.1 x 37.1 x 10.4 mm | 45.5 x 37 x 10.7 mm | 51 x 46 x 21 / 51 x 77 x 16 mm | 66 x 102 x 46 mm |
| Feedback: BiSS-C, Hall, Encoder, Resolver, Sensorless | |||
| Communication Interfaces: CAN, RS-422 | |||
| *: With Heatsink **: Optional | |||
